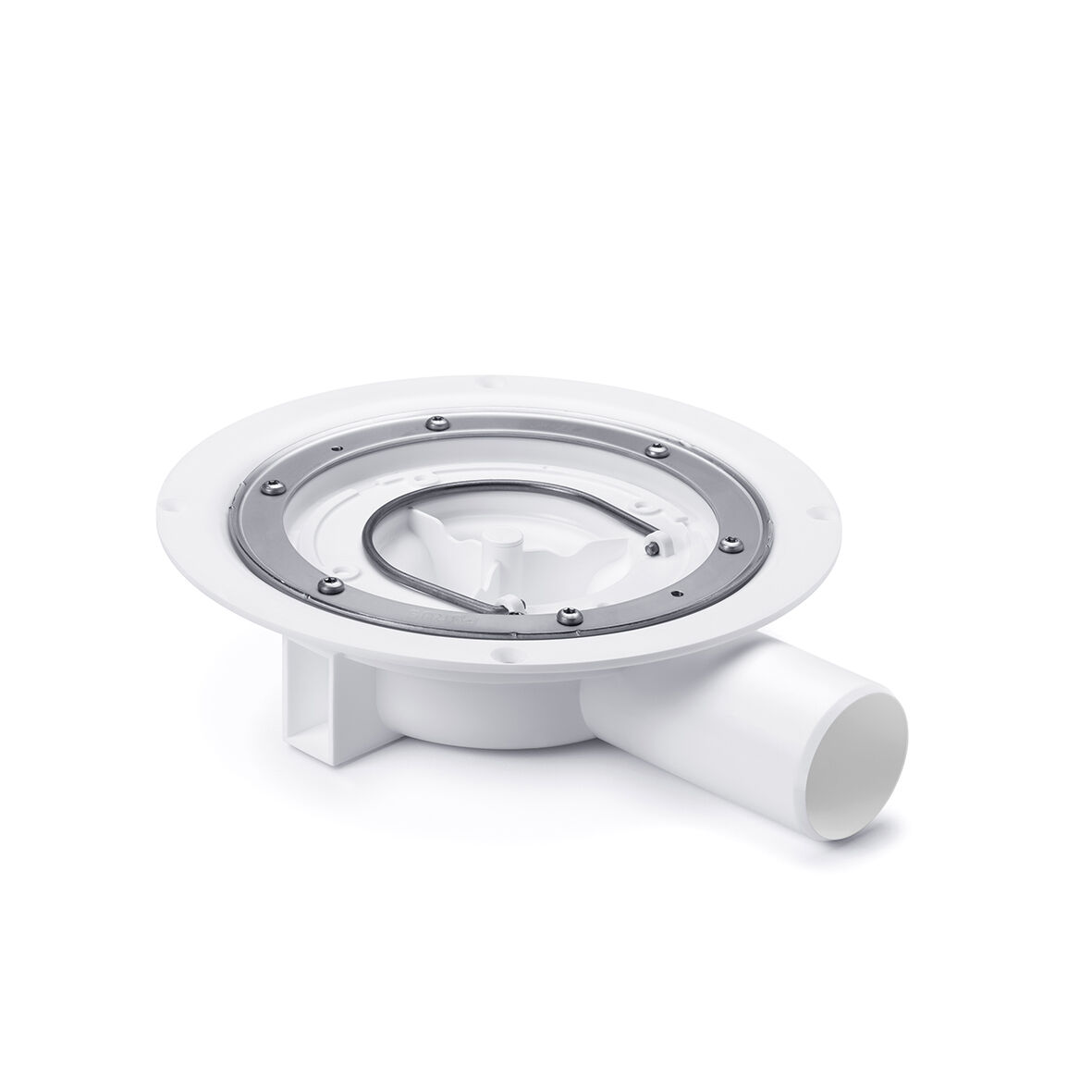

The 59mm S-Series Minimax is a floor drain with a 50mm side outlet and a super-low level construction height of just 59mm. It is designed for installation in concrete floors and is suitable for tiled and vinyl floor finishes (stainless steel grates ordered separately). The 59mm S-Series floor drain comes with a removable NOOD water trap, stainless steel clamping ring and 50mm to 1½" solvent weld adapter. The NOOD water trap is a mechanical trap which closes when there is no water present, thus preventing any foul air from escaping through the drain. It also comes with a protective cover that is intended to prevent any concrete or debris from entering the drain during installation.
The clamping ring is for vinyl flooring with a thickness of up to 3mm.
The clamping ring is for vinyl flooring with a thickness of up to 3mm.
- Low-built
- Comes with NOOD water trap
- The floor drain comes with a stainless steel screwed clamping ring with 6 screws, specially developed for waterproofing membrane
- Many screw holes for easy installation - if necessary, there are new screw holes around the entire flange of the drain
- Low seat (7mm)
Item Number
7110406UK
Dimension
1 ½"
Floor Construction
Concrete flooring
Floor Covering
Tiles/Vinyl
Function
Side outlet
Item Color
White
Material
PP
Pressure Flow Temp
1,3 l/s
Size
Ø179 mm
Version
With NOOD water trap
