Purus channel volume concrete

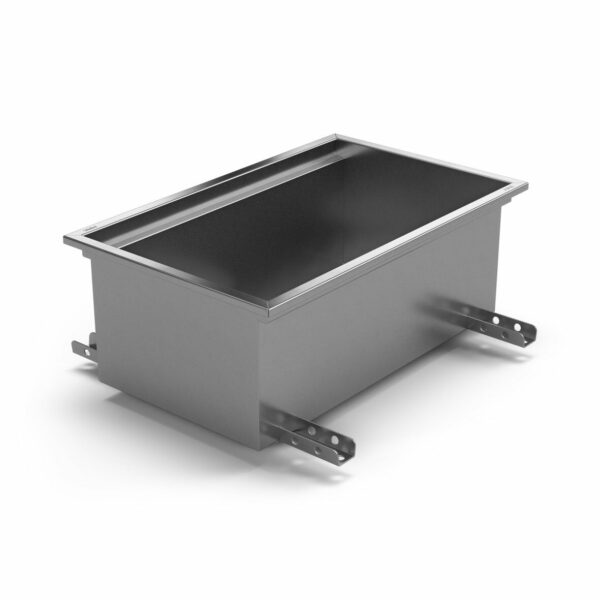

Purus channel volume for concrete floors is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 400x400x100 mm with a mid outlet and is intended for concrete flooring. The floor channel needs to be supplemented with grid depending on the environment and outlet house in acid-resistant stainless steel. Purus channel volume is adapted for environments with requirements for hygiene, has a large volume and high flow capacity.

Purus channel volume for concrete floors is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 400x400x100 mm with a mid outlet and is intended for concrete flooring. The floor channel needs to be supplemented with grid depending on the environment and outlet house in acid-resistant stainless steel. Purus channel volume is adapted for environments with requirements for hygiene, has a large volume and high flow capacity.
Purus channel volume for concrete floors is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 600x400x100 mm with a mid outlet and is intended for concrete flooring. The floor channel needs to be supplemented with grid depending on the environment and outlet house in acid-resistant stainless steel. Purus channel volume is adapted for environments with requirements for hygiene, has a large volume and high flow capacity.
Purus channel volume for concrete floors is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 900x600x100 mm med ett mittplacerat utlopp och är avsedd för betonggolv som ytskikt. The floor channel needs to be supplemented with grid depending on the environment and outlet house in acid-resistant stainless steel. Purus channel volume is adapted for environments with requirements for hygiene, has a large volume and high flow capacity.
Purus channel volume for concrete floors is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 800x500x100 mm with a mid outlet and is intended for concrete flooring. The floor channel needs to be supplemented with grid depending on the environment and outlet house in acid-resistant stainless steel. Purus channel volume is adapted for environments with requirements for hygiene, has a large volume and high flow capacity.
Purus channel volume for concrete floors is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 1000x300x50 mm med ett mittplacerat utlopp och är avsedd för betonggolv som ytskikt. The floor channel needs to be supplemented with grid depending on the environment and outlet house in acid-resistant stainless steel. Purus channel volume is adapted for environments with requirements for hygiene, has a large volume and high flow capacity.
Purus channel volume for concrete floors is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 300x300x200 mm with a mid outlet and is intended for concrete flooring. The floor channel needs to be supplemented with grid depending on the environment and outlet house in acid-resistant stainless steel. Purus channel volume is adapted for environments with requirements for hygiene, has a large volume and high flow capacity.

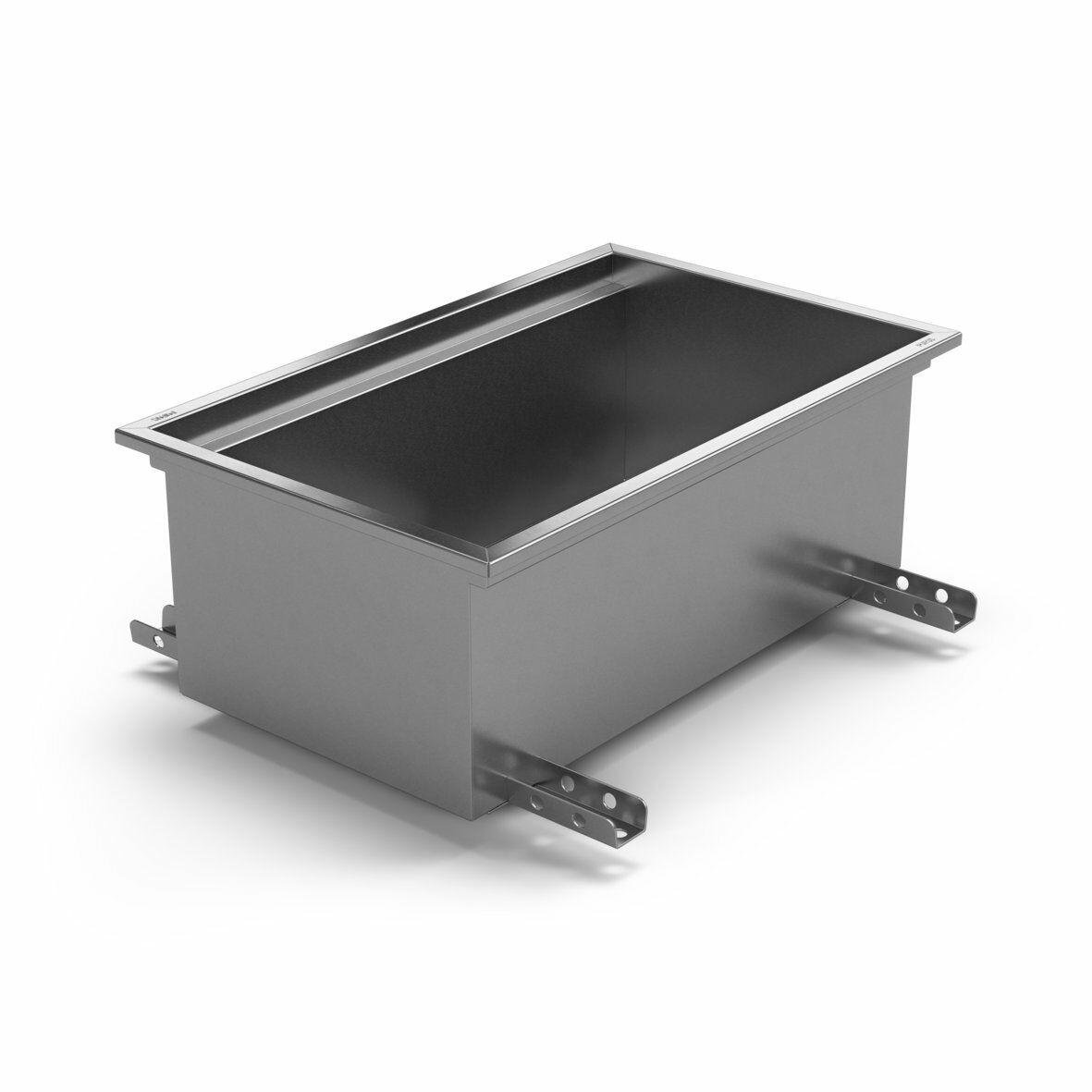

Purus channel volume for concrete floors is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 500x300x200 mm med ett mittplacerat utlopp och är avsedd för betonggolv som ytskikt. The floor channel needs to be supplemented with grid depending on the environment and outlet house in acid-resistant stainless steel. Purus channel volume is adapted for environments with requirements for hygiene, has a large volume and high flow capacity.
Purus channel volume for concrete floors is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 800x500x200 mm with a mid outlet and is intended for concrete flooring. The floor channel needs to be supplemented with grid depending on the environment and outlet house in acid-resistant stainless steel. Purus channel volume is adapted for environments with requirements for hygiene, has a large volume and high flow capacity.
Purus channel volume for concrete floors is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 500x300x50 mm with a mid outlet and is intended for concrete flooring. The floor channel needs to be supplemented with grid depending on the environment and outlet house in acid-resistant stainless steel. Purus channel volume is adapted for environments with requirements for hygiene, has a large volume and high flow capacity.
Purus channel volume for concrete floors is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 1200x600x100 mm with a mid outlet and is intended for concrete flooring. The floor channel needs to be supplemented with grid depending on the environment and outlet house in acid-resistant stainless steel. Purus channel volume is adapted for environments with requirements for hygiene, has a large volume and high flow capacity.
Size
400x400x100
Item Number
818102
Floor Construction
Concrete flooring
Material
Acid-resistant stainless steel 1.4404
Floor Covering
Concrete
Construction Height
100
Surface
Pickled
Version
Do not forget grid/outlet house
Item Color
Stainless
Outlet Dimension
Side/bottom in stainless steel in Ø75/Ø110 mm
Function
Central outlet
Electrical Data
15 l
Size
600x400x100
Item Number
818103
Floor Construction
Concrete flooring
Material
Acid-resistant stainless steel 1.4404
Floor Covering
Concrete
Construction Height
100
Surface
Pickled
Version
Do not forget grid/outlet house
Item Color
Stainless
Outlet Dimension
Side/bottom in stainless steel in Ø75/Ø110 mm
Function
Central outlet
Electrical Data
23 l
Size
900x600x100
Item Number
818104
Floor Construction
Concrete flooring
Material
Acid-resistant stainless steel 1.4404
Floor Covering
Concrete
Construction Height
100
Surface
Pickled
Version
Do not forget grid/outlet house
Item Color
Stainless
Outlet Dimension
Side/bottom in stainless steel in Ø75/Ø110 mm
Function
Central outlet
Electrical Data
51 l
Size
800x500x100
Item Number
818105
Floor Construction
Concrete flooring
Material
Acid-resistant stainless steel 1.4404
Floor Covering
Concrete
Construction Height
100
Surface
Pickled
Version
Do not forget grid/outlet house
Item Color
Stainless
Outlet Dimension
Side/bottom in stainless steel in Ø75/Ø110 mm
Function
Central outlet
Electrical Data
38 l
Size
1000x300x50
Item Number
818113
Floor Construction
Concrete flooring
Material
Acid-resistant stainless steel 1.4404
Floor Covering
Concrete
Construction Height
50
Surface
Pickled
Version
Do not forget grid/outlet house
Item Color
Stainless
Outlet Dimension
Side/bottom in stainless steel in Ø75/Ø110 mm
Function
Central outlet
Size
300x300x200
Item Number
818107
Floor Construction
Concrete flooring
Material
Acid-resistant stainless steel 1.4404
Floor Covering
Concrete
Construction Height
200
Surface
Pickled
Version
Do not forget grid/outlet house
Item Color
Stainless
Outlet Dimension
Side/bottom in stainless steel in Ø75/Ø110 mm
Function
Central outlet
Size
500x300x200
Item Number
818108
Floor Construction
Concrete flooring
Material
Acid-resistant stainless steel 1.4404
Floor Covering
Concrete
Construction Height
200
Surface
Pickled
Version
Do not forget grid/outlet house
Item Color
Stainless
Outlet Dimension
Side/bottom in stainless steel in Ø75/Ø110 mm
Function
Central outlet
Size
800x500x200
Item Number
818109
Floor Construction
Concrete flooring
Material
Acid-resistant stainless steel 1.4404
Floor Covering
Concrete
Construction Height
200
Surface
Pickled
Version
Do not forget grid/outlet house
Item Color
Stainless
Outlet Dimension
Side/bottom in stainless steel in Ø75/Ø110 mm
Function
Central outlet
Size
500x300x50
Item Number
818112
Floor Construction
Concrete flooring
Material
Acid-resistant stainless steel 1.4404
Floor Covering
Concrete
Construction Height
50
Surface
Pickled
Version
Do not forget grid/outlet house
Item Color
Stainless
Outlet Dimension
Side/bottom in stainless steel in Ø75/Ø110 mm
Function
Central outlet
Size
1200x600x100
Item Number
818115
Floor Construction
Concrete flooring
Material
Acid-resistant stainless steel 1.4404
Floor Covering
Concrete
Construction Height
100
Surface
Pickled
Version
Do not forget grid/outlet house
Item Color
Stainless
Outlet Dimension
Side/bottom in stainless steel in Ø75/Ø110 mm
Function
Central outlet
