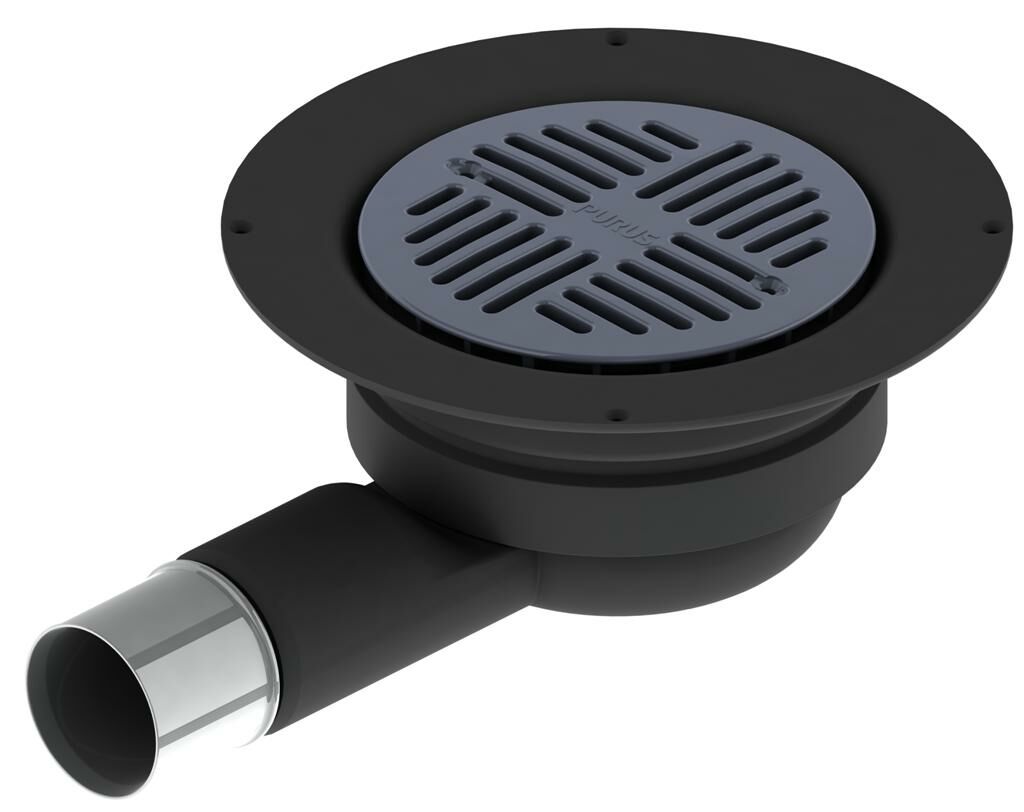

The Minimax Two Part floor drain has a 50mm side outlet and a total height of 89mm. It is designed as a two-part system for ease of installation in former trays, when using wooden joists. It is also suitable for installation in concrete floors. The Minimax Two Part floor drain comes complete with a removable NOOD water trap, clamping ring, 50mm to 1½" adapter for solvent weld and plastic grate for vinyl flooring. The NOOD water trap is a mechanical trap which closes when there is no water present, thus preventing any foul air from escaping through the drain. The floor drain is suitable for vinyl, tiled, resin and concrete floor finishes when ordered with a compatible stainless steel grate.
Item Number
52719
Dimension
Ø50 mm
Floor Covering
Vinyl
Function
Side outlet
Item Color
Grey
Material
PP
Pressure Flow Temp
0,7 l/s
Size
Ø130 mm
Version
With NOOD water trap
