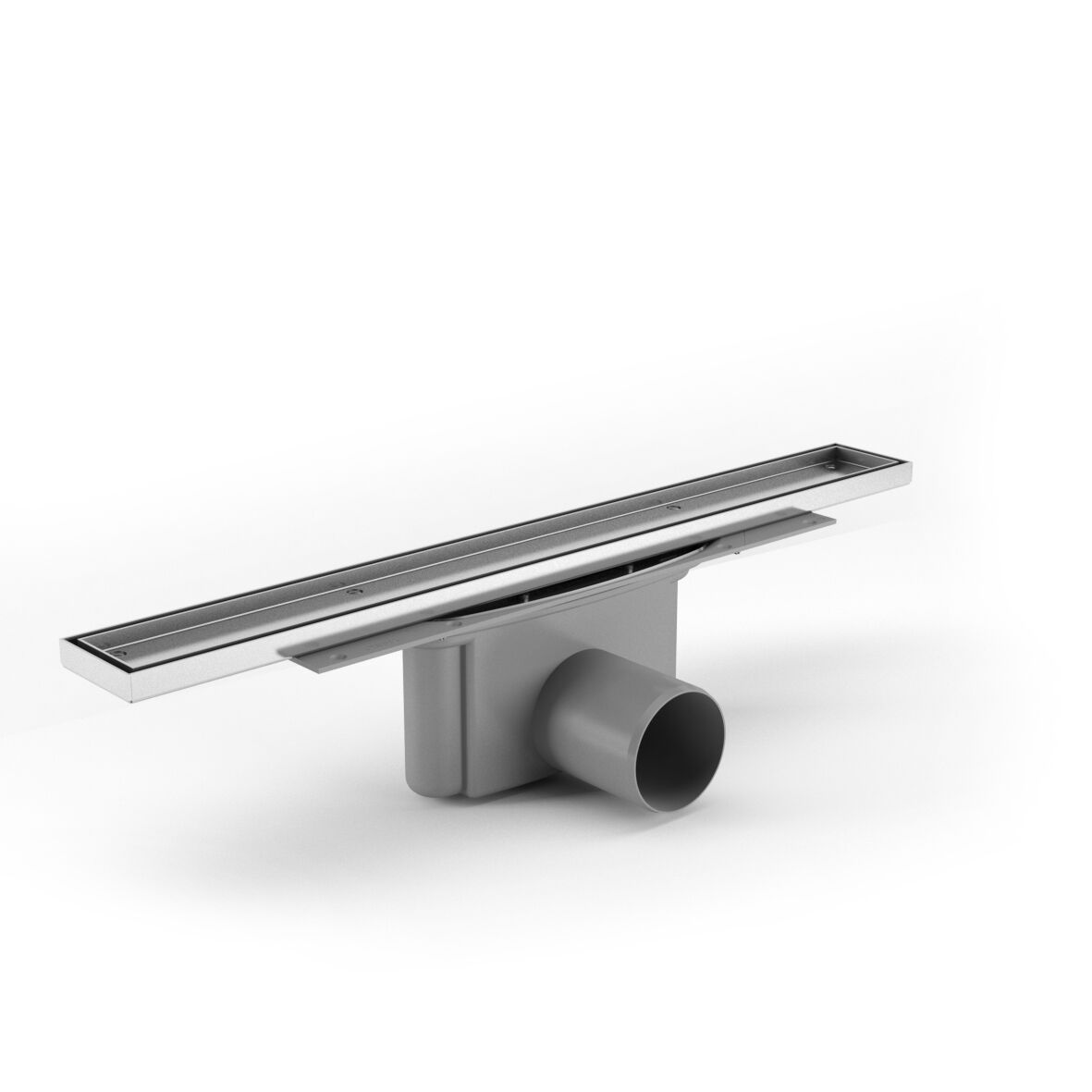

The Purus Line Tile Insert 600 is a complete linear floor drain with a side 75 mm outlet. It can be installed in wooden or concrete joists. The Purus Line Tile Insert comes complete with a removable NOOD water trap, strainer, stainless steel clamping ring, stainless steel frame, Tile Insert grate and installation kit. The NOOD water trap is a mechanical trap which closes when there is no water present, thus preventing any foul air from escaping through the drain. This linear floor drain can be installed against the wall or elsewhere in the room.
- Delivered as a complete package with everything required for installation with tiles
- NOOD water trap as standard
- With Tile Insert grate
- Can be installed close to the wall
- Type approved by SINTEF and tested according to EN-1253
Item Number
3401809
Dimension
Ø75 mm
Floor Construction
Concrete/Wood
Floor Covering
Tiles
Function
Side outlet
Item Color
Grey
Material
ABS, PP, Stainless steel 1.4301, Wood
Pressure Flow Temp
0,8 l/s
Size
600
Version
With frame and grating
