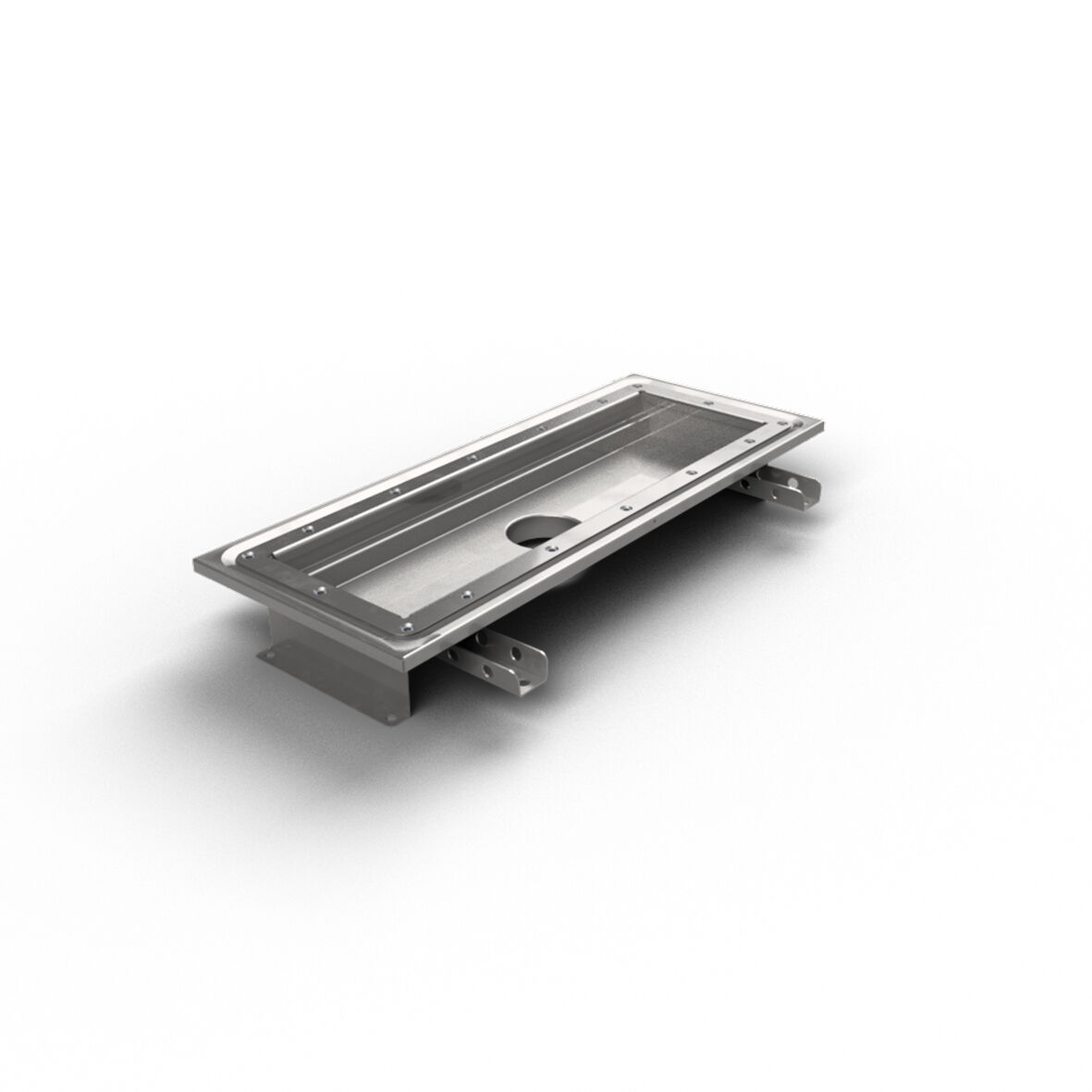

Purus channel 150 vinyl 500 mid-outlet

Item

856593

Purus channel 150 is a channel made of acid-resistant stainless steel for installation in concrete floors.The channel has a central outlet and is intended for vinyl floors as a surface layer. Supplement with gully base in plastic or acid-resistant stainless steel and mesh grate for higher load classes or grating for K3 (300 kg) load.
Purus channel 150 is a channel made of acid-resistant stainless steel for installation in concrete floors.The channel has a central outlet and is intended for vinyl floors as a surface layer. Supplement with gully base in plastic or acid-resistant stainless steel and mesh grate for higher load classes or grating for K3 (300 kg) load.
  • Narrow channel with high flow capacity
  • Low installation height
  • Hygienic construction
  • High quality and durability
  • Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Item Number
856593
Floor Construction
Concrete flooring
Floor Covering
Vinyl
Function
Central outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Bottom/side in plastic or stainless steel in Ø50, Ø75 or Ø 110 mm
Size
500x150 mm
Surface
Pickled
Version
Do not forget grid/outlet house
